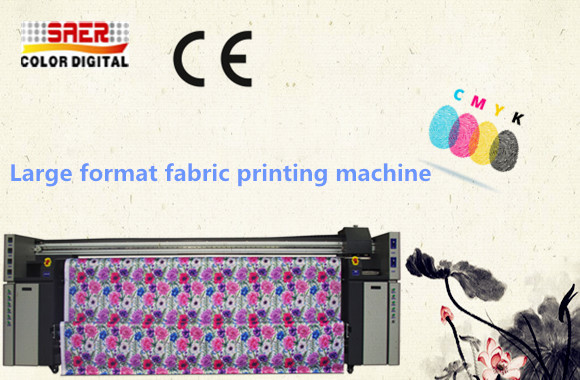

Product name: Continuous Ink Supply Epson Head Printer / Sublimation Fabric Plotter
Features:
Printer:
1. 3 pieces Epson 4720 print head, with fast print speed, long lifespan, high precision.
2. Printing groove designed specially for fabric printing to collect waste ink and keep fabric clean.
3. HIWIN mute guide rail,Germany IGUS silent drag chain,make the printing environment more quieter.
4. Refillable ink cartridge reduces production cost.
Heater:
1. Ceramic heating tube: Heating fast and well distributed
2. Feeding and taking up inflatable roller.
3. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape.
4. Intelligent Temperature control system. (0°C----300°C adjustable)
5. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.
Specifications:
| Product Parameter |
| Model type | CSR3200 |
| Print head | 3 pieces Epson 4720 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 320000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
| Printing resolution and speed | 360*1800dpi(3 pass) 65m2/h |
| 720*1220dpi(4 pass) 45m2/h |
| 720*1800dpi(6 pass) 35m2/h |
Description:
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
7· Easy to Set up and Operate
9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
Advantages:
- Directly print designs on fabric material,no need any transfer paper
- After the high temperature to the fabric color fixation,the printed image color is bright and vivid with nice color gamut
- Rapid speed can reach 22 sqm / hour in 4 pass 1440 Dpi resolution
- Working process is simple, one person can operates with high efficency and short time.
- Low cost, liner breaking the highest costs performance
Application:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
Product Tags:
|
|
Continuous Ink Supply Sublimation Fabric Plotter Dual CMYK Color High Efficiency Images
|
